AL ST Octopus Pop Rivet

Nova Perçin

AL ST Octopus Pop Rivet

You can access the catalog from the link below

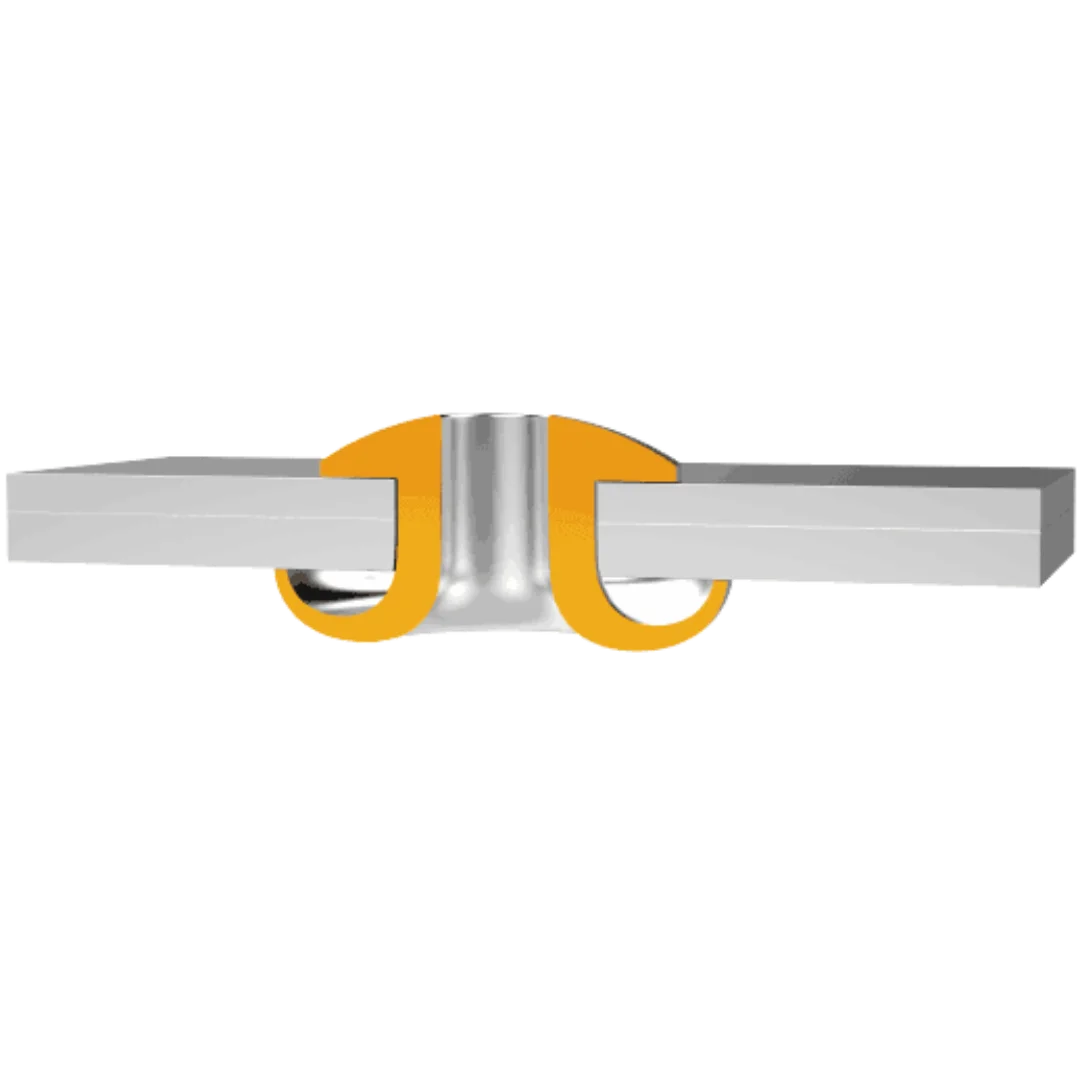

- Designed for enhanced support in brittle, soft or ductile materials.
- This significantly reduces the risk of the rivet breaking through brittle material or sinking into soft materials.
- Peel rivets are ideal for use in wood, insulation, drywall and plastic materials.

Length (mm) +1/-0	Riveting Pitch (mm) Min/Max	Tensile Strength(N)	Shear Resistance(N)
10.0	1.0-5.0	500	700
12.0	3.0-7.0	500	700
14.0	5.0-9.0	500	700
16.0	7.0-11.0	500	700
18.0	9.0-13.0	500	700

Description

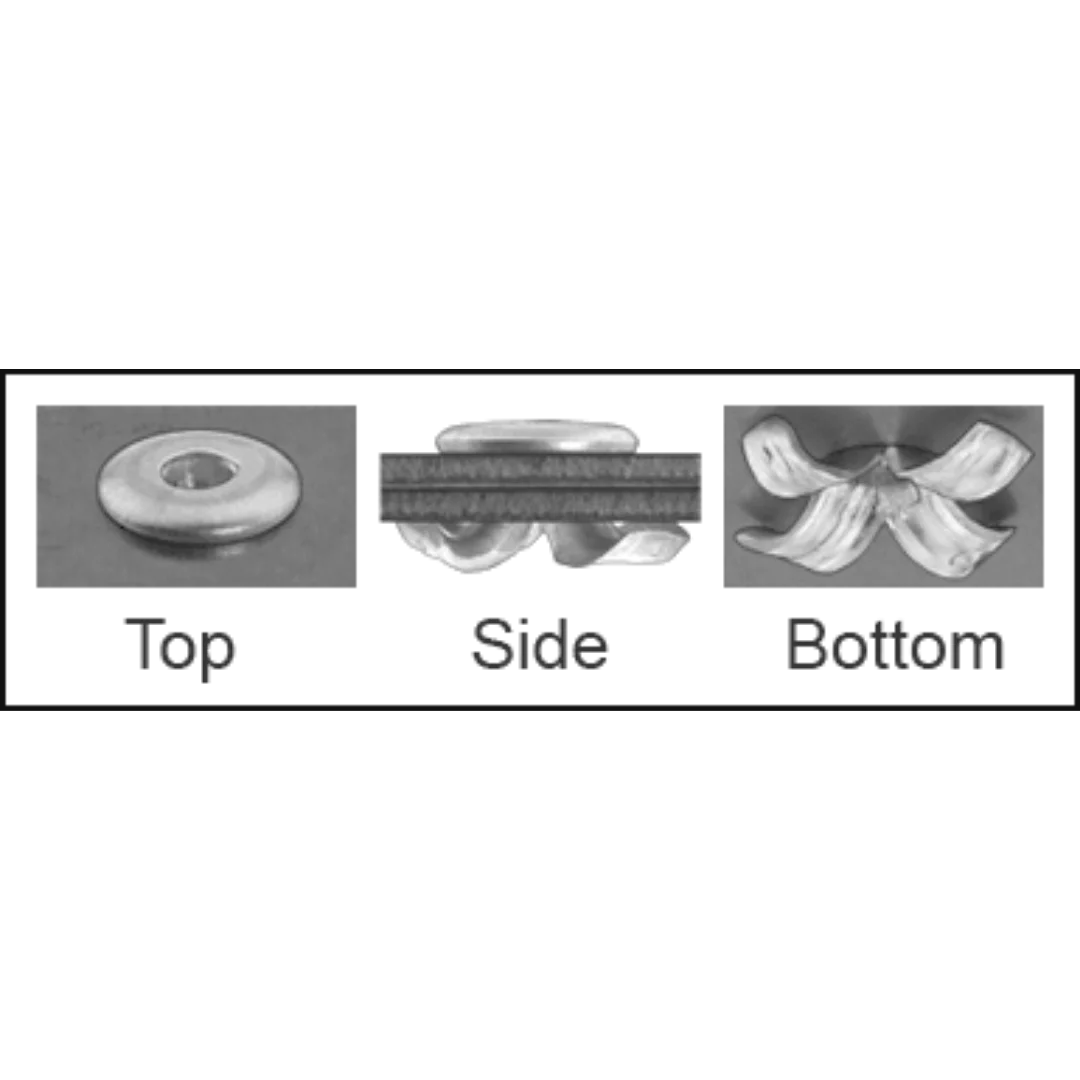

AL ST Octopus Pop Rivet spreads evenly over a large surface area thanks to its unique octopus-style expansion structure and offers high tensile and shear strength. These rivets provide secure connections in sensitive materials such as thin metal sheets and plastics, while exhibiting long-lasting performance with its sealing feature. AL ST Octopus Pop Rivet, which is included in Nova Perçin‘s quality product range, offers an ideal solution for those looking for robustness and reliability in industrial applications.
