SS SS Sealed Bump Head

Nova Perçin

SS SS Sealed Bump Head

You can access the catalog from the link below

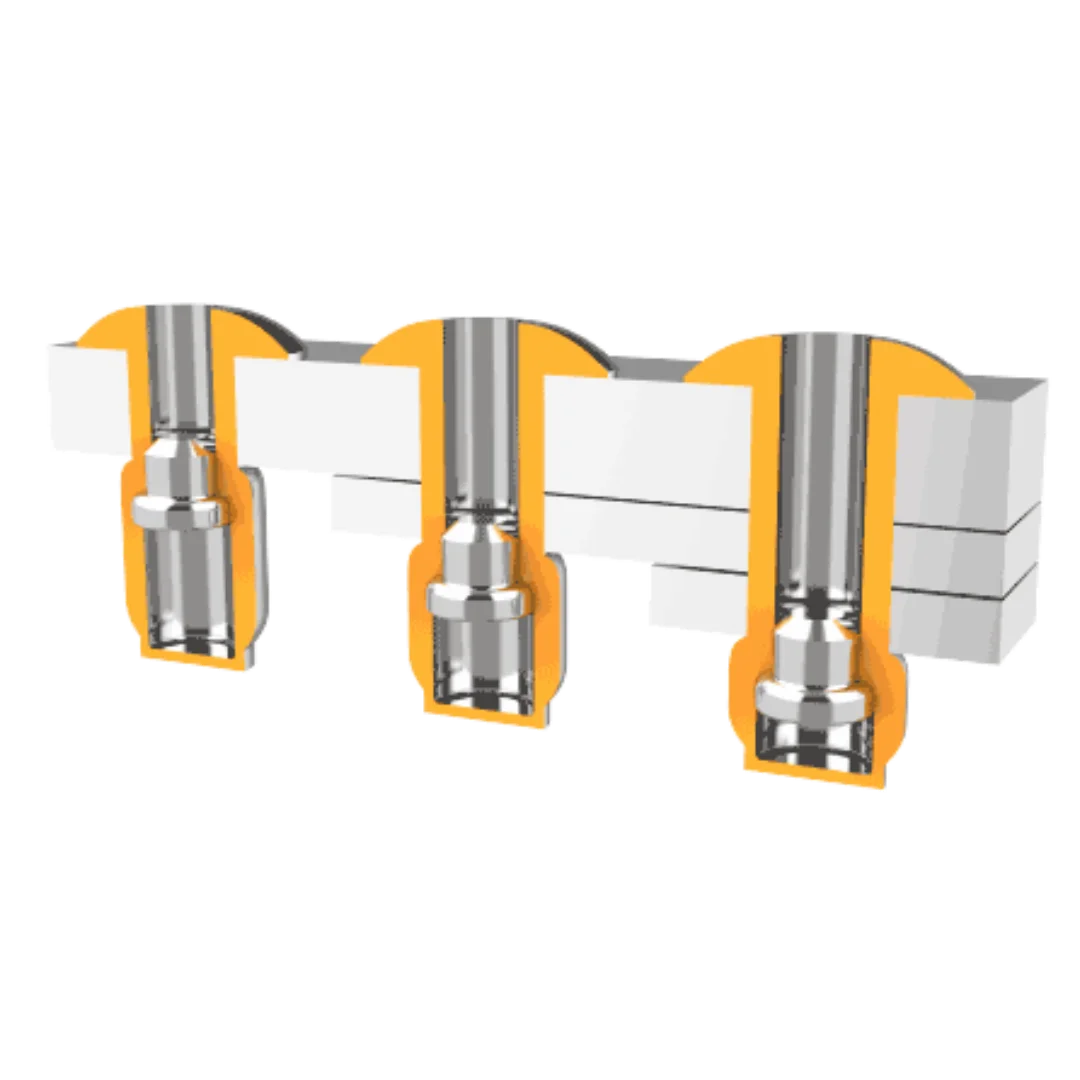

  • The closed end feature does not allow the mandrel ball to fall outside the riveted assembly.
  • Does not loosen from dynamic stress (vibrations in general).
  • Leak Resistance in roofing, metal structures or waterproof applications.
  • Stainless steel
  •
Length (mm) +1/-0Riveting Pitch (mm) Min/MaxTensile Strength(N) MIN.Shear Resistance(N) MIN.
6.50.5-2.020002200
8.02,0-3,520002200
9.53.5-5.020002200
11.05.0-6.520002200
12.56.5-8.020002200

Description

SS SS Sealed Bombe Head rivets are high performance fasteners that stand out for their durability and reliability. Manufactured from steel, these rivets offer high tensile and shear strength, ensuring reliable connections even in harsh conditions. The sealed design prevents the passage of liquids and gases, playing a critical role, especially in automotive and industrial applications. Produced with high quality standards, SS SS Sealed Bombe Head rivets exhibit an effective performance thanks to their wide grip range and load distribution properties. These rivets, which are part of Nova Perçin‘s reliable product range, help you create robust and long-lasting connections in your projects.
