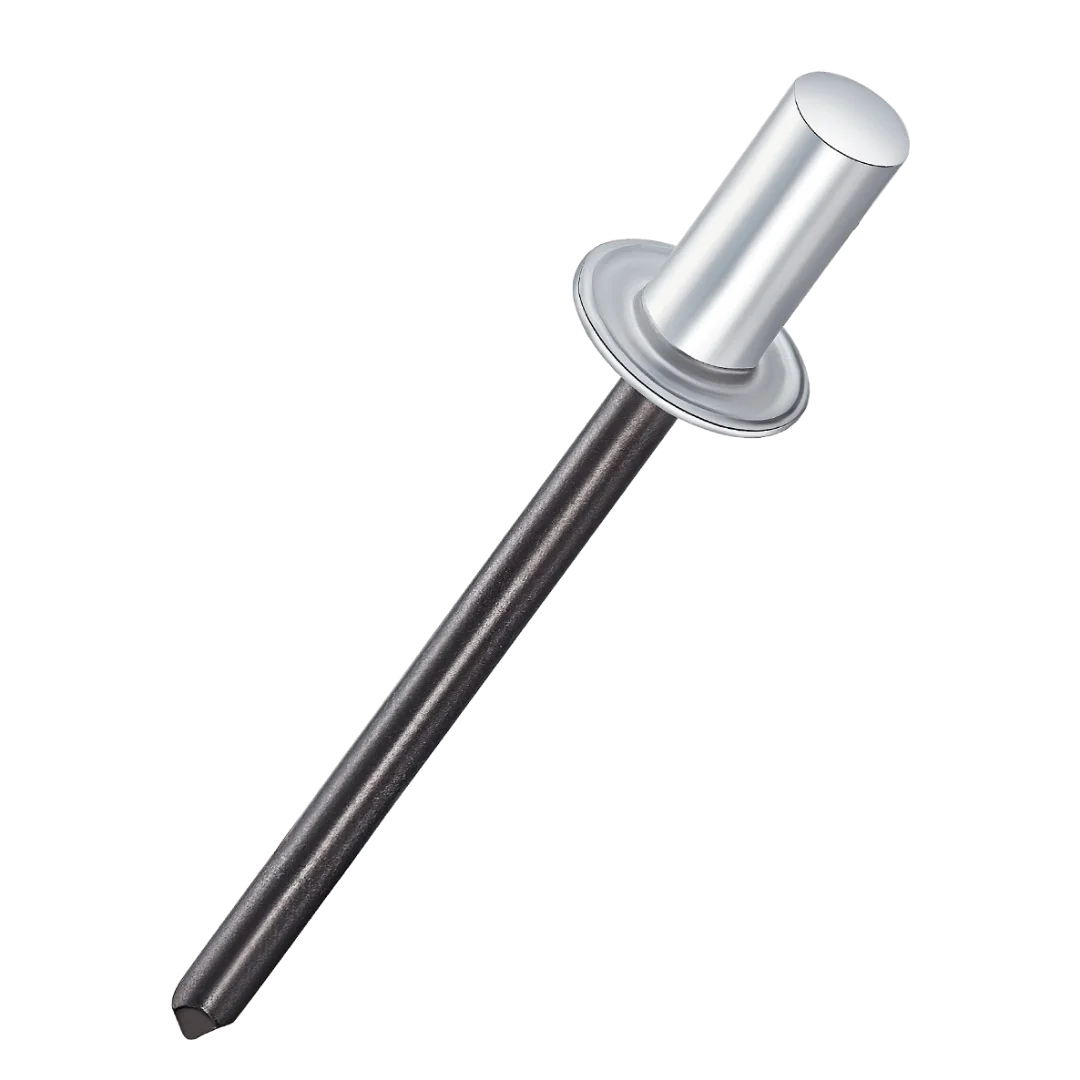

AL ST Sealed Bump Head

Nova Perçin

AL ST Sealed Bump Head

You can access the catalog from the link below

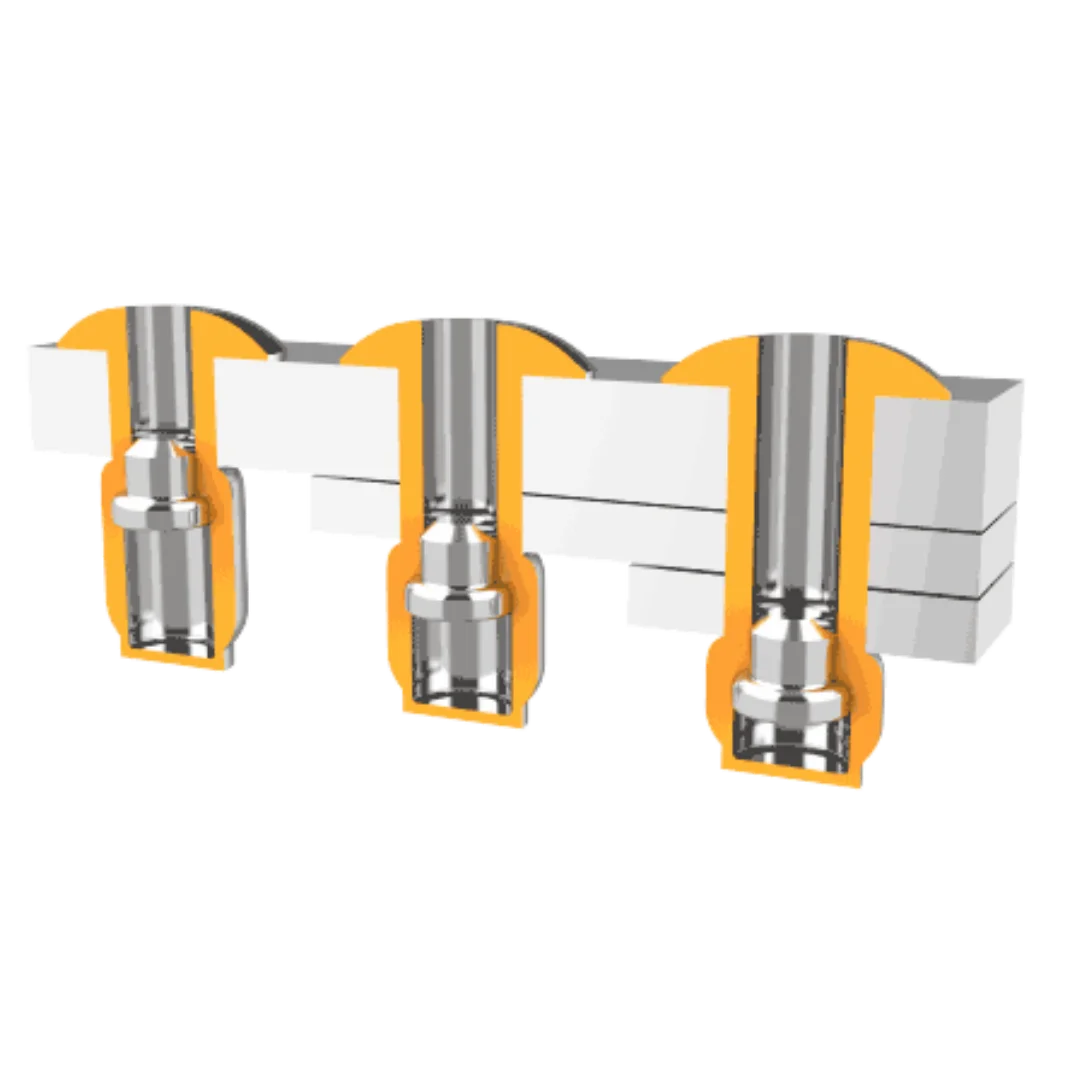

The closed end feature does not allow the mandrel ball to fall outside the riveted assembly.
Does not loosen from dynamic stress (vibrations in general).
Leakage Resistance in roofing, metal structures or waterproof applications.

Length (mm) +1/-0	Riveting Pitch (mm) Min/Max	Tensile Strength(N) MIN.	Shear Resistance(N) MIN.
6.5	0.5-2.0	1100	1450
8.0	2,0-3,5	1100	1450
9.5	3.5-5.0	1100	1450
11.0	5.0-6.5	1100	1450
12.5	6.5-8.0	1100	1450

Description

AL ST Sealed Bombe Head rivets are a high quality product that offers durable and reliable fastening solutions. Manufactured from steel, these rivets are characterized by high tensile and shear strength, ensuring reliable performance in demanding applications. Thanks to its leak-proof design, it effectively prevents the passage of liquids and gases, and is frequently preferred especially in automotive and industrial areas. Its wide gripping range and special structure ensures a balanced distribution of load and torque forces. AL ST Sealed Bombe Head rivets, which are part of Nova Perçin‘s product range, help you create long-lasting and robust connections in your projects.
