SS SS Multigrip Countersunk Head

Nova Perçin

SS SS Multigrip Countersunk Head

You can access the catalog from the link below

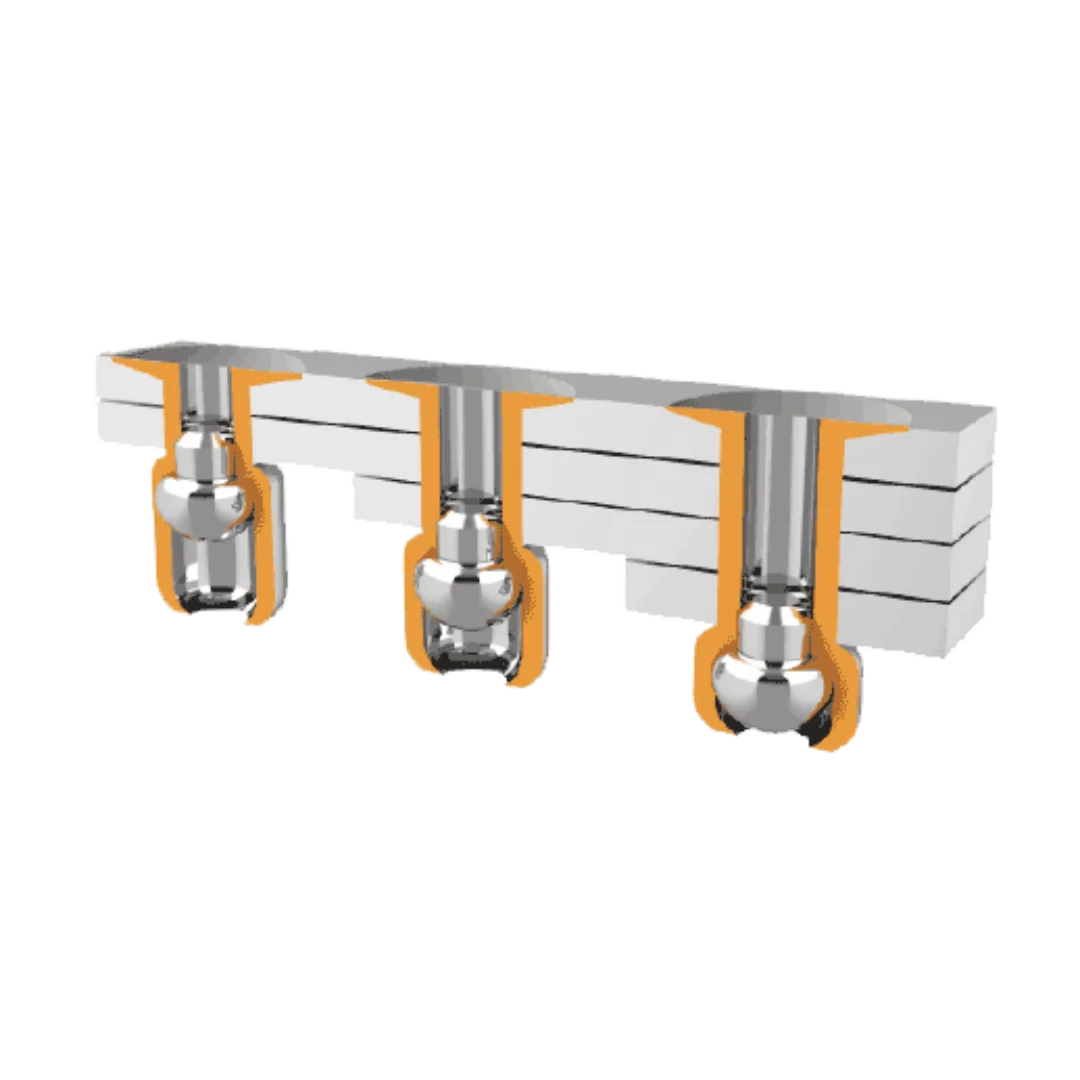

- Multigrip feature. Allows working with a wide range of grip ranges. With just two sizes, a wide grip range from 1 to 16 mm. is covered, reducing rivet inventory.
- The mandrel locking feature prevents electrical problems or knocking.
- Versatility. Just one size replaces the grip range of several standard products.
- Stainless Steel

Length (mm) +1/-0	Riveting Pitch (mm) Min/Max	Tensile Strength(N) MIN.	Shear Strength(N) MIN.
8.0	1.0-4.0	1700	2000
10.0	2.5-6.0	1700	2000
12.0	1.5-8.0	1700	2000
14.0	3.5-9.5	1700	2000
16.0	5.5-11.5	1700	2000

Description

SS SS Multigrip Countersunk Head rivets provide robust and reliable connections with a wide grip range and high shear and tensile strength. The expanding fastening feature on the blind side allows load and torque forces to be distributed evenly. It is therefore an excellent choice for working with plastics and thin sheets of metal in particular and is often preferred for repair projects. The SS SS Multigrip Countersunk Head with its virtual closed end and flat break mandrel provides reliable solutions for your projects, reflecting the quality and durability of Nova Rivet.
