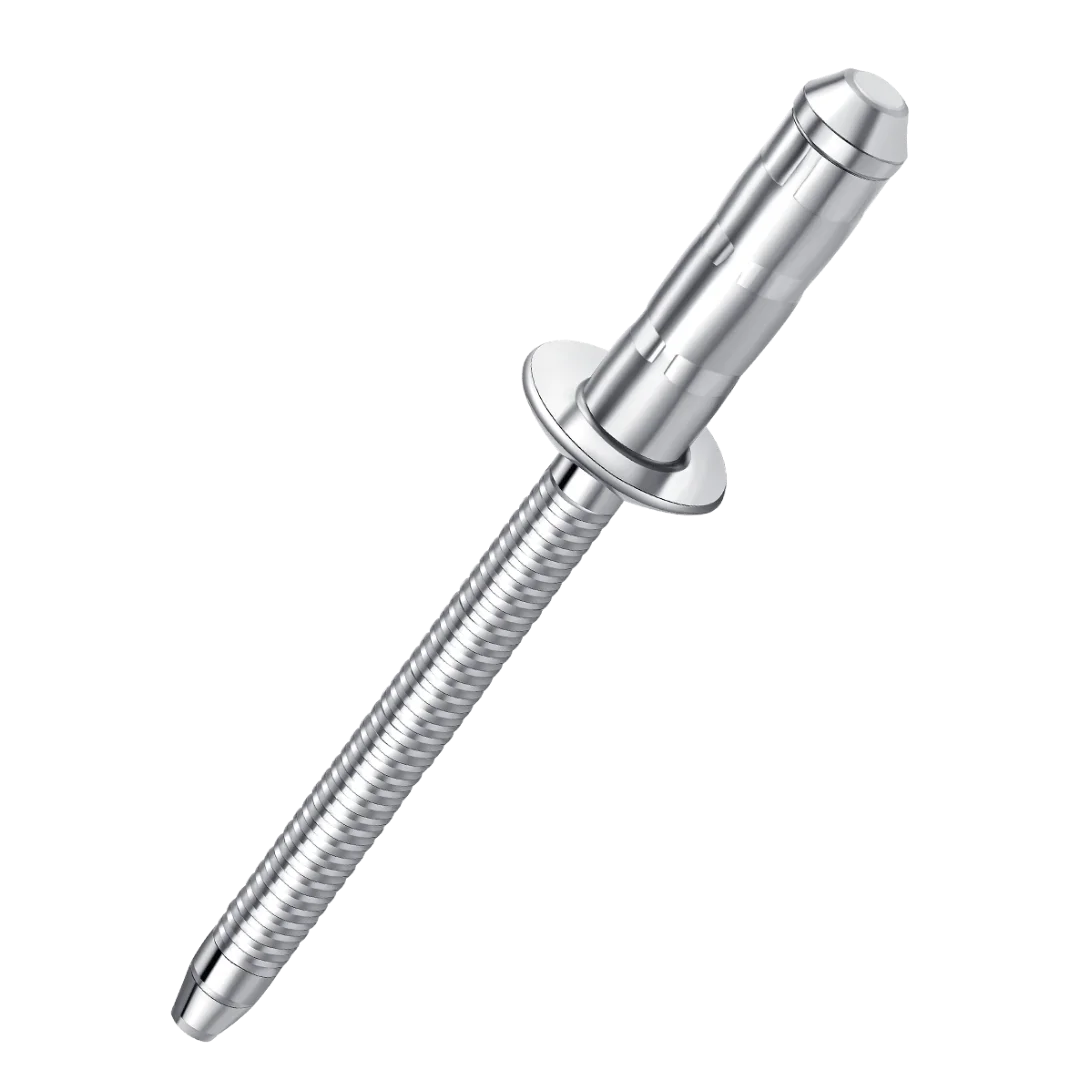

SS SS Multigrip Bump Head

Nova Perçin

SS SS Multigrip Bump Head

You can access the catalog from the link below

- Multigrip feature. Allows working with a wide range of grip ranges. With just two sizes, a wide grip range from 1 to 16 mm. is covered, reducing rivet inventory.
- The mandrel locking feature prevents electrical problems or knocking.
- Versatility. Just one size replaces the grip range of several standard products.
- Stainless Steel

Length (mm) +1/-0	Riveting Pitch (mm) Min/Max	Tensile Strength(N) MIN.	Shear Strength(N) MIN.
8.0	1.0-4.0	1700	2000
10.0	2.5-6.0	1700	2000
12.0	1.5-8.0	1700	2000
14.0	3.5-9.5	1700	2000
16.0	5.5-11.5	1700	2000

Description

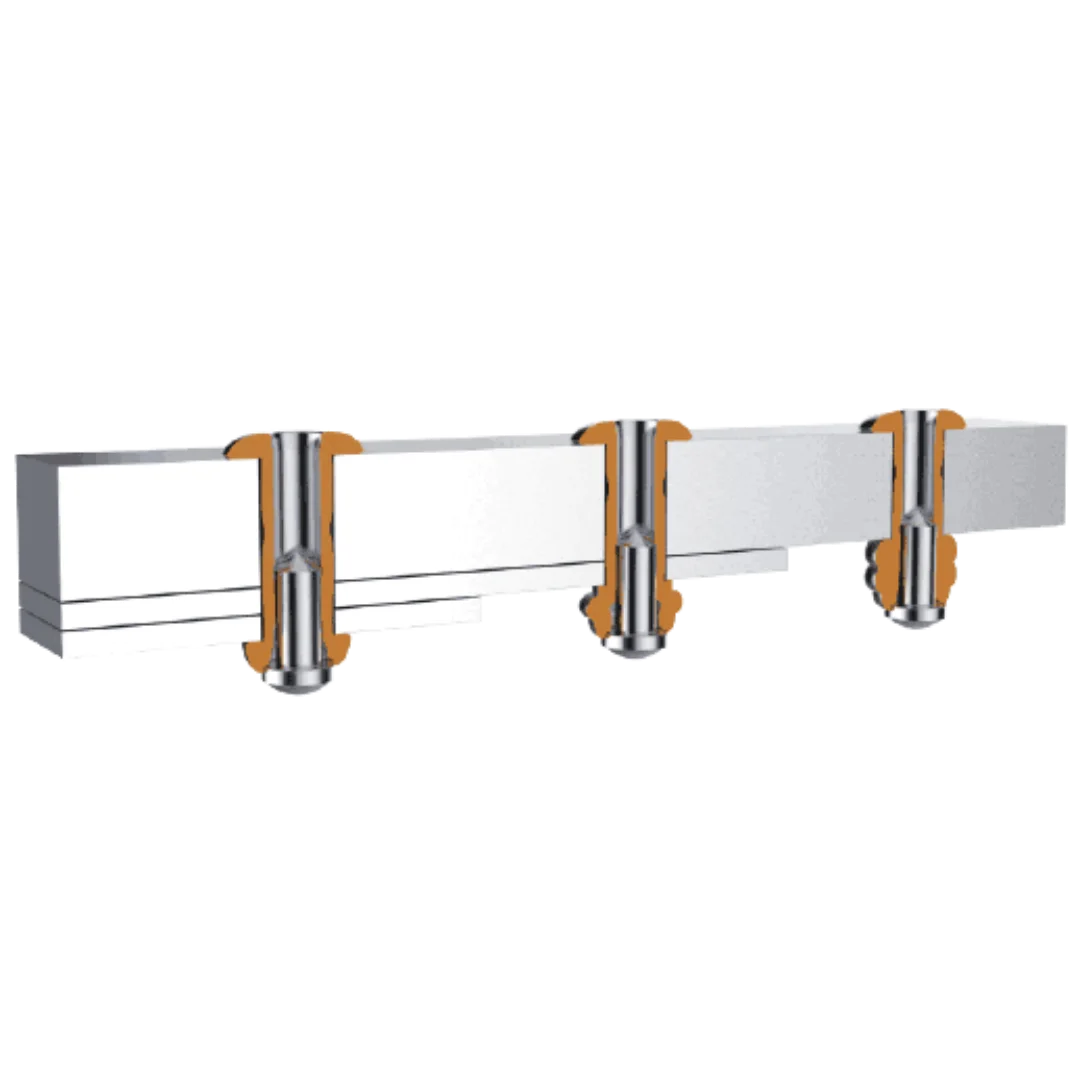

SS SS Multigrip Bombe Head rivets offer a wide gripping range and high shear and tensile strength, ensuring reliable connections. Thanks to the expanding clamping feature on the blind side, load and torque forces are evenly distributed. These rivets are particularly ideal for working with plastics and thin sheets of metal and are frequently used in repair projects. The SS SS Multigrip Bombe Head, with its virtual closed end and flat break mandrel for sealing, is the perfect choice for projects looking for durability and light weight. Available in Nova Rivet‘s quality product range, these rivets are designed to provide high performance and long-lasting connections.
