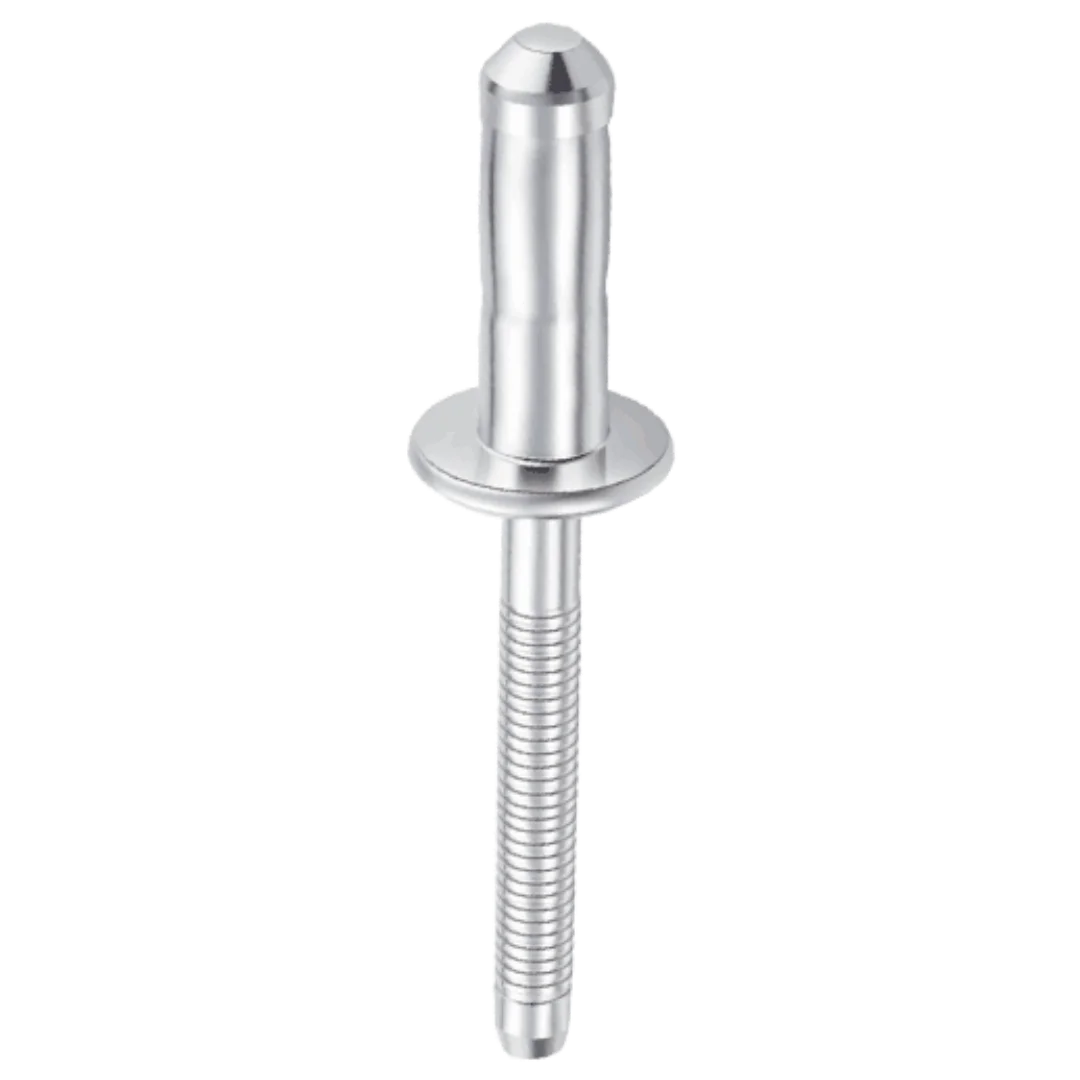

SS SS Onlock Rivet

Nova Perçin

SS SS Onlock Rivet

You can access the catalog from the link below

- Structural fastener: Very high shear strength and high tensile strength
- Effective head locking system through mechanical locking of the grooves.

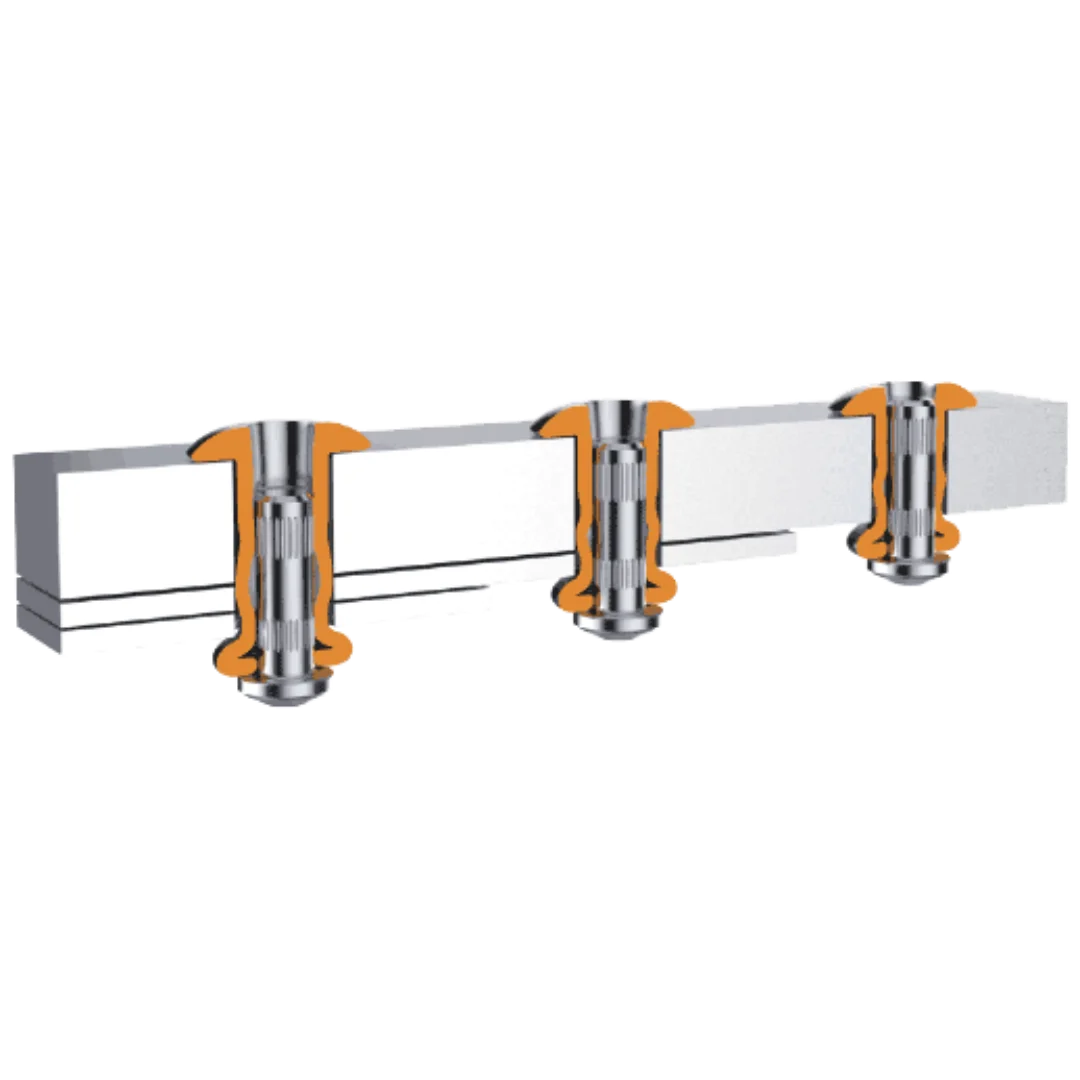

- Both load and torque forces are well distributed due to the large expansion on the blind side.
- Excellent torque values for fixing parts at the workplace, especially suitable for working with thin sheet metal.
- Stainless Steel

Length (mm) +1/-0	Riveting Pitch (mm) Min/Max	Tensile Strength(N)	Shear Resistance(N)
9.0	1.50-3.50	6000	4900
11.5	3.50-6.00	6800	4900
14.0	6.00-8.50	6800	4900
16.5	8.50-11.00	6800	4900
19.0	11.00-13.00	6800	4900

Description

SS SS Onlock Rivet is manufactured from stainless steel and is ideal for applications requiring high strength and durability. Thanks to its Onlock design that provides a secure hold, it offers a reliable connection even in vibrating and challenging conditions. SS SS Onlock Rivet, which provides long-lasting use outdoors thanks to its corrosion resistance, is preferred in automotive, construction and heavy industry projects. These rivets in Nova Perçin‘s quality product range are the right option for those looking for high performance and durability.
